Calibration & Pressure Workshop

Royal Turbine specializes in the manufacturing, repair, and calibration of diaphragm
seals and capillary systems for all types of pressure and differential pressure transmitters.
With an advanced pressure calibration facility, our workshop provides full oil filling, venting,
and final calibration services for a wide range of diaphragm seal assemblies, ensuring
accuracy, reliability, and long service life.

Our Capabilities

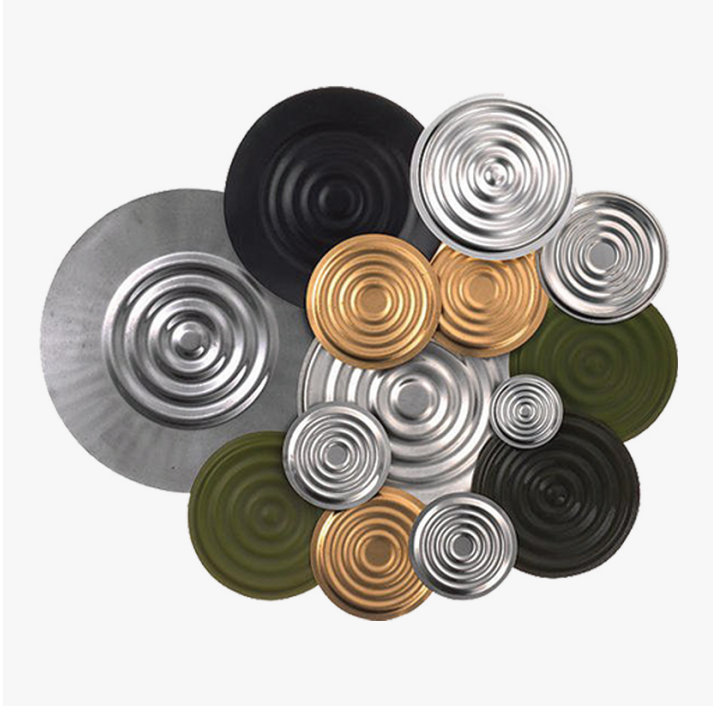

  • Complete manufacturing and rebuilding of diaphragm seals using high-grade materials such as Stainless Steel (SS316L), Monel, Inconel, and Hastelloy, suitable for corrosive and high-temperature applications.
  • Fabrication and repair of capillary systems (remote seal assemblies) for gauge, differential, and level transmitters with custom lengths and process-compatible tubing.

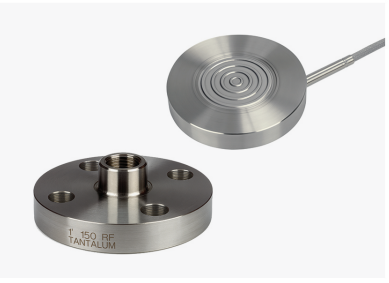

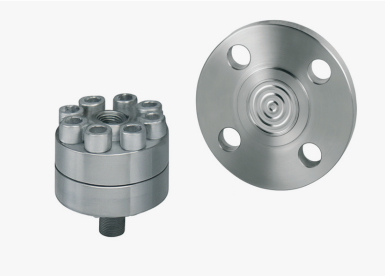

  • Supply and integration of flanged, threaded, and flush-mount diaphragm seals, as well as flushing rings and spacers according to process requirements.
  • Vacuum filling and degassing of system oil (silicone, glycerin, halocarbon, Syltherm® fluids, etc.) to ensure no trapped gas or air bubbles remain in the system.

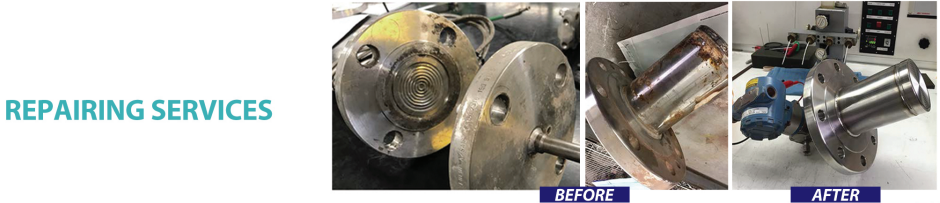

  • Full pressure calibration and leak testing of transmitter assemblies after manufacturing or repair, with traceable calibration certificates.
  • One-year performance warranty for all repaired or newly manufactured diaphragm seal systems.

Technical Advantages

  • Expertise in special alloys and exotic materials for demanding process conditions, including high
    pressure, high temperature, and corrosive media.
  • Repair and calibration capability for any brand of diaphragm seal or transmitter (OEM and non-OEM).
  • Use of vacuum oil-filling systems to enhance sensitivity and reduce hysteresis errors.
  • Full compliance with international manufacturing and calibration standards (IEC, ISO, ASME, NAСE).
  • Final inspection and traceable documentation for all products from Royal Turbine’s calibration department.

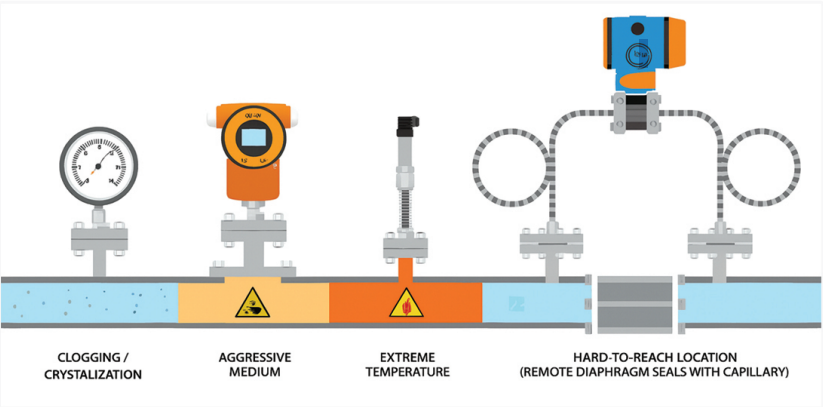

Applications

  • Gauge Pressure Transmitters
  • Differential Pressure Transmitters
  • Level Measurement Transmitters with Remote Seals
  • Pressure Gauges and Indicators
  • Corrosive or viscous process lines
    requiring sensor isolation

Commitment to Quality

Every diaphragm seal or capillary assembly serviced
by Royal Turbine undergoes:

  • Precision machining and welding under
    controlled conditions
  • Leak and performance testing
  • Pressure calibration and documentation
  • Quality verification by experienced
    technicians
